Superior Carbide Milling Inserts for Processing Curved Surfaces and Arc Grooves High-Speed Performance

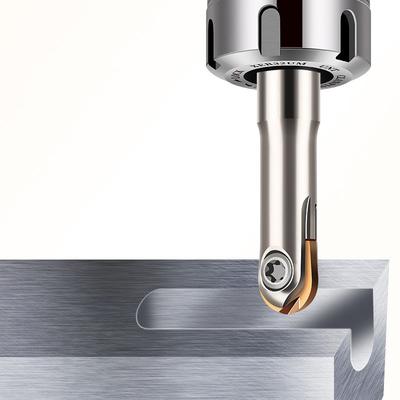

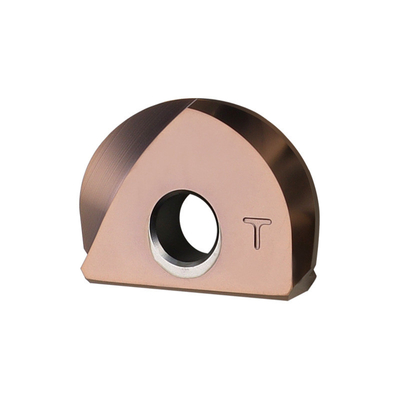

The P3200 is a specialized carbide ball milling insert designed for use in CNC milling machines. These inserts are particularly effective for processing curved surfaces and arc grooves, making them ideal for semi-finish milling at high speeds across a variety of materials, especially stainless steels and high-temperature alloys.

Product Details — P3200

Material Quality

• Composition: Made from 100% original carbide powder, including grades K10-K20, P10-P20, and M10-M30, ensuring excellent wear resistance and toughness.

Usage

• Primarily used for R angle processing and machining of curved surfaces.

Dimensions

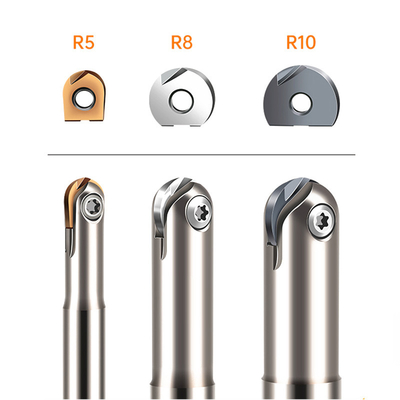

• Diameter (D): 8 to 25 mm
• Radius (R): 4 to 12.5 mm
• Height (h): 9.5 to 21.15 mm
• For specific dimensions, please refer to the product specifications below.

Coating

• Advanced Coating: Coating options will be defined based on your application needs, utilizing cutting-edge technology for enhanced corrosion and wear resistance.

Fine Grinding Process

• The insert surface features high smoothness and superior cutting edge quality, effectively reducing friction and tool wear.

Perfect Fit

• Designed with precise and smooth edge strips to minimize micro-vibration during processing.

Applicable Materials

• Uncoated Inserts: Suitable for aluminum, non-ferrous metals, and non-metallic materials.
• Coated Inserts: Ideal for carbon steel, alloy steel, mold steel, hardened steel, and ductile iron.

Customization

• If the standard stock does not meet your specifications, please provide CAD or 3D drawings for a tailored solution.

Production Quality

• All inserts are produced using advanced EU processing equipment. For more information, refer to the “Entire Production Quick View” section below.

Product Features

1. Suitable for processing steel, stainless steel, and aluminum.
2. Widely utilized for various curved surfaces and arc groove machining.
3. Exceptional wear and breakage resistance.
4. High precision and easy replacement ensure compatibility with tool holders, minimizing micro-vibration during processing.
5. High-performance composite coating provides a super hard and smooth surface.

Product Specification

Note: For detailed dimensions, please consult the specifications. Custom sizes can be processed according to customer requirements.

Entire Production Quick View

1. Utilize 100% original carbide powder to create integral insert blanks.
2. Conduct flat grinding machining.
3. Perform surrounding grinding machining.
4. Create precise cutting edges.
5. Execute chamfering and tip-arc processing of the cutting edge.
6. Apply composite coating for enhanced performance.

Product Specification:

Entire Production Quick View:

1.Use 100% original carbide powder to sinter to get the integral insert blank.

2.Flat grinding machining.

3.Surrounding grinding machining.

4.Create insert cutting edge.

5.Chamfering and tip-arc processing of the insert cutting edge.

6.Composite Coating.

Quality Inspection:

Why choose us:
1.Technical innovation: complex surfaces and functional structures can be quickly formed and kept accurate.
2.Processing speed: short production cycle, fast delivery time, to ensure delivery on time according to the delivery date.
3.Product quality: high quality guaranteed,high precision, up to 0.002-0.001mm.
4.Confidentiality system: triple confidentiality measures to protect, proofing more assured.
5.Fully equipped: excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: reasonable design and material selection lead us to a competitive price, so that could help provide you more favorable price of the same level products .

FAQ

Q1: Who are we?
A:We are based in Guangdong Province, China, start from 2010,sell to Western Europe(10.00%),North America(20.00%),Eastern Europe(20.00%),Southeast Asia(40.00%),Africa(10.00%). There are total about 51-100 people in our factory.

Q2. Can you send products to our Forwarder in China?

A: Yes,if you have Forwarder in China,we will glad to send products to him/her.

Q3: What about the package?
A: We use plastic boxes to pack our products, and filled plastic is shockproof and transported in cartons. also It can make as you need and depend on the shapes of the product.

Q4:Is your company accept customization?

A: OEM and ODM are available. And we have our own professional R&D team servicing for you.

Q5: What's your delivery way?

A: According to the requirements of customers,we will provide the best transportation service
