TGF32R050 005 Durable CNC Tool Inserts For CNC Machine Holder
Product Description

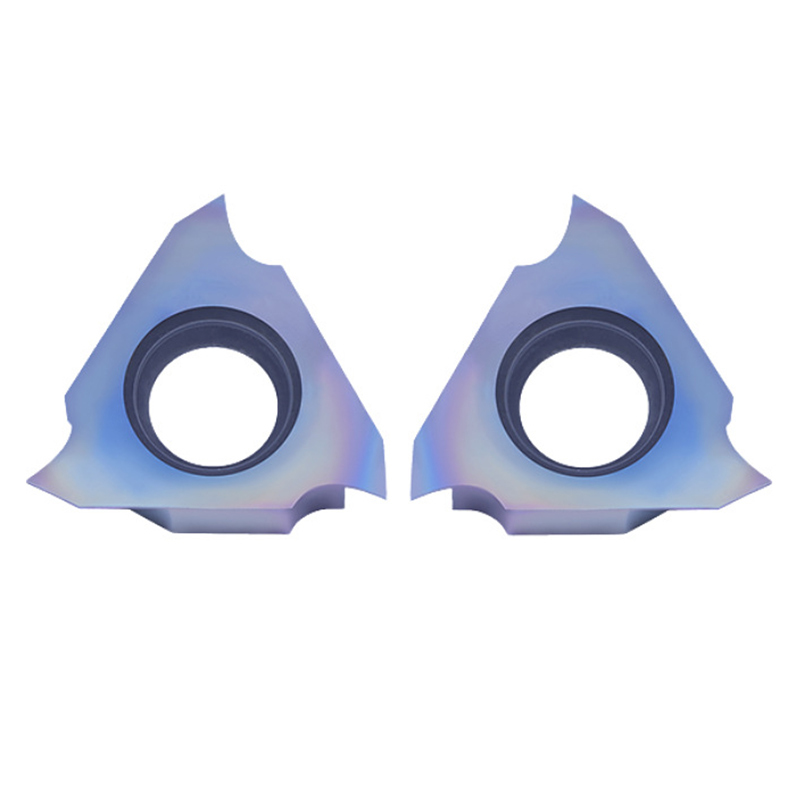

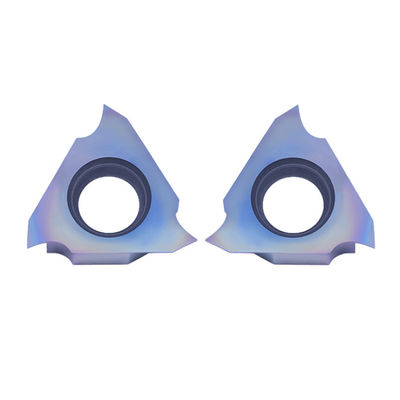

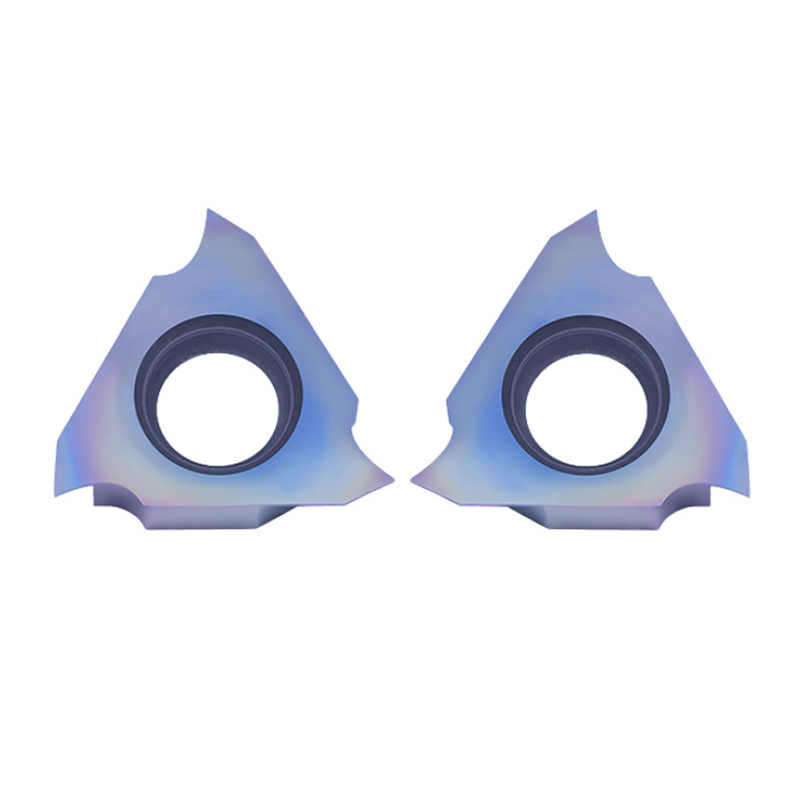

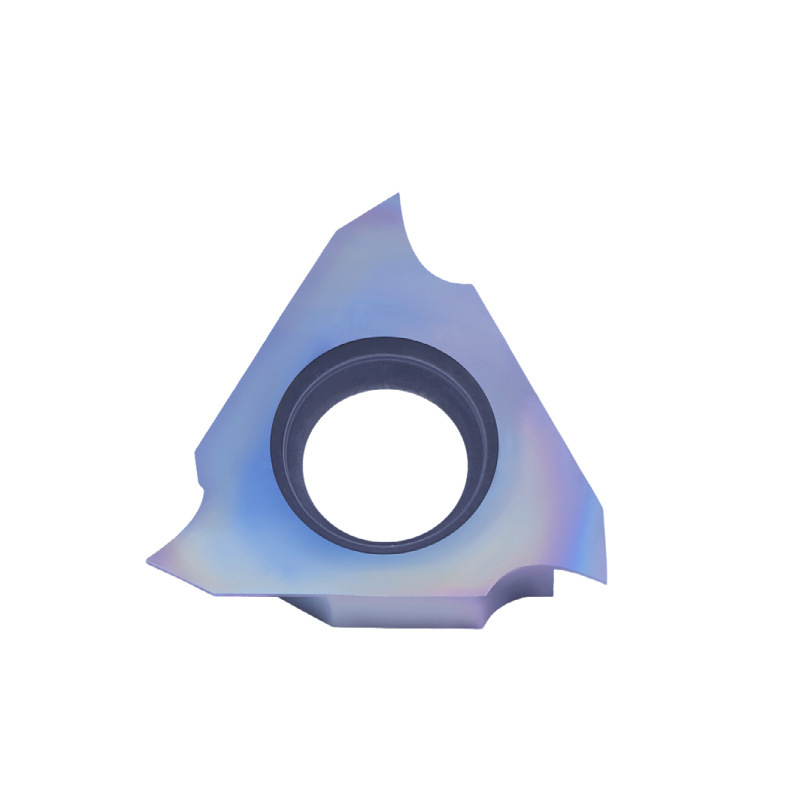

TGF32R050 005 Durable Inserts, Carbide Grooving Inserts For CNC Machine Holder
Application Field
TGF32 is a series of carbide grooving inserts, mainly used for turning & grooving operations on lathe & CNC machines which are available in different shapes & cutting angles. Carefully select insert geometry, insert grade, insert shape (nose angle), insert size, nose radius and entering (lead) angle to achieve good chip control and machining performance.
Inserts Production Standard
The insert size details can be processed separately according to customer requirements, and refer to the standard: Kyocera TGF32 series, NTK's GTM32, GTMX32, GTMH32 series, etc.
TGF32: Kyocera TGF32 series, a popular series of carbide inserts. "R050 005" represents the specification and cutting orientation of insert. Our standard production size and standing stock specifications mainly refer to this series.
GTMH(X)32: A popular series of carbide insert, named by NTK. Similar specification as TGF32.
Product Details - TGF32R050 005
- Excellent material: 100% original carbide powder for excellent wear resistance and toughness.
- Dimensions: ①CW:0.33~2.50mm. ②CDX: 0.8~2.50mm. ③RE: 0.05~0.10mm.
- Advanced coating: Customized per application with advanced coating technology for corrosion and wear resistance.
- Fine grinding process: High surface smoothness with good cutting edge quality and minimal cutting resistance.
- Perfect fit: Accurate and smooth insert edge strips to minimize micro-vibration during processing.
- Applicable materials: Uncoated inserts for aluminum, non-ferrous metals, non-metallic. Coated inserts for carbon steel, alloy steel, mold steel, other harden steel, ductile iron etc.
- Customization: Available for non-standard requirements with CAD/3D drawings.
- Mature insert production: Produced using high-end EU processing equipment.
Product Features
- Chamfering and tip-arc processing protects insert edge from fracture and ensures smooth workpiece surface.
- High performance composite coating provides super hard and smooth surface.
- Professional chip-breaker design for perfect cutting performance.
- Precise dimensions and high accuracy for perfect fit to tool holders.
- Base material imported from Europe for better oxidation and wear resistance.
- Customized insert design available for different dimensions, coating, chip-breaker, and material grade.
Product Specification
| Part Number |
Dimensions(mm) |
Applicable Tool Holders |
| CW | CDX | RE |
| TGF32 R/L 033-005 |
0.33 | 0.8 | 0.05 |
KTGF R/L S...KTGF R/L GTT R/L NGT... R/L |
| TGF32 R/L 050-005 |
0.50 | 1.2 | 0.05 |
|
| TGF32 R/L 075-010 |
0.75 | 2.0 | 0.1 |
|
| TGF32 R/L 095-010 |
0.95 |
|
| TGF32 R/L 100-010 |
1.00 |
|
| TGF32 R/L 120-010 |
1.20 |
|
| TGF32 R/L 125-010 |
1.25 |
|
| TGF32 R/L 140-010 |
1.40 |
|
| TGF32 R/L 145-010 |
1.45 |
|
| TGF32 R/L 150-010 |
1.50 |
|
| TGF32 R/L 175-010 |
1.75 |
|
| TGF32 R/L 200-010 |
2.00 | 2.5 |
|
| TGF32 R/L 250-010 |
2.50 |
|
Attention: The above are our standard production size and standard stock specifications. Size details can be processed separately according to customer requirements.
Entire Production Quick View
- Use 100% original carbide powder to sinter to get the integral insert blank.
- Flat grinding machining.
- Surrounding grinding machining.
- Create insert cutting edge.
- Chamfering and tip-arc processing of the insert cutting edge.
- Composite Coating.
Quality Inspection
Why Choose Us
- Technical innovation: Complex surfaces and functional structures can be quickly formed and kept accurate.
- Processing speed: Short production cycle and fast delivery time.
- Product quality: High precision up to 0.005-0.001mm.
- Confidentiality system: Triple confidentiality measures for protection.
- Fully equipped: Multiple production lines with advanced equipment.
- Cost-effective: Competitive pricing for same level products.
FAQ
Q1: Do you produce special cutting inserts or tools?
A: Yes, we specialize in customized cutter fabrication and can translate complex cutting ideas into reality. Our tools are designed for various demanding applications and materials.
Q2: Do you accept low volume for sample order? And what's your MOQ for special tools?
A: Yes, we do. For sample order, MOQ one piece is accepted, and the sample lead time is 2-3 days. It can be negotiated for special requirements.
Q3: What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you photos of products and packages before final payment.
Q4: Who are we?
A: We are based in Guangdong Province, China, established in 2010. We sell to Western Europe (10.00%), North America (20.00%), Eastern Europe (20.00%), Southeast Asia (40.00%), and Africa (10.00%). Our factory employs 51-100 people.
Q5: Can you send products to our Forwarder in China?
A: Yes, if you have a Forwarder in China, we will gladly send products to them.
